2.5BBL All in one home Brewing kit

Standard packing: Wrap with stretch film, pack with export plywood box

Keywords:

Number and size:

Category:

Consultation hotline:

2.5BBL All in one home Brewing kit

Picture and text details

Package：

1. Standard packing: Wrap with stretch film, pack with export plywood box

2. Packing according to customer’s special requirement

Material: #304 stainless steel

Place of Origin: Nanyang, henan

Brand Name: Jingde/OEM

Model Number: JDTK300L-E, JDF300L-N

Product name: Beer brewing equipment

Usage: For beer brewery, factory, Restaurant, Pub, hotel,

Voltage: 220V-410V

Capacity: 50L-5000L

Control system: Semi-automatic

Product Detailed Specification

1.: Malt Handling System

Part Name

Quantity

Specification

Malt Handling

1. Modes: double rolls;

2. Output: 150kg/h;

3. Power: 1.5kw,customizable;

4. Low noise and dust,Greatly improving work environment;

2.: Saccharification System

Part Name	Quantity	Specification

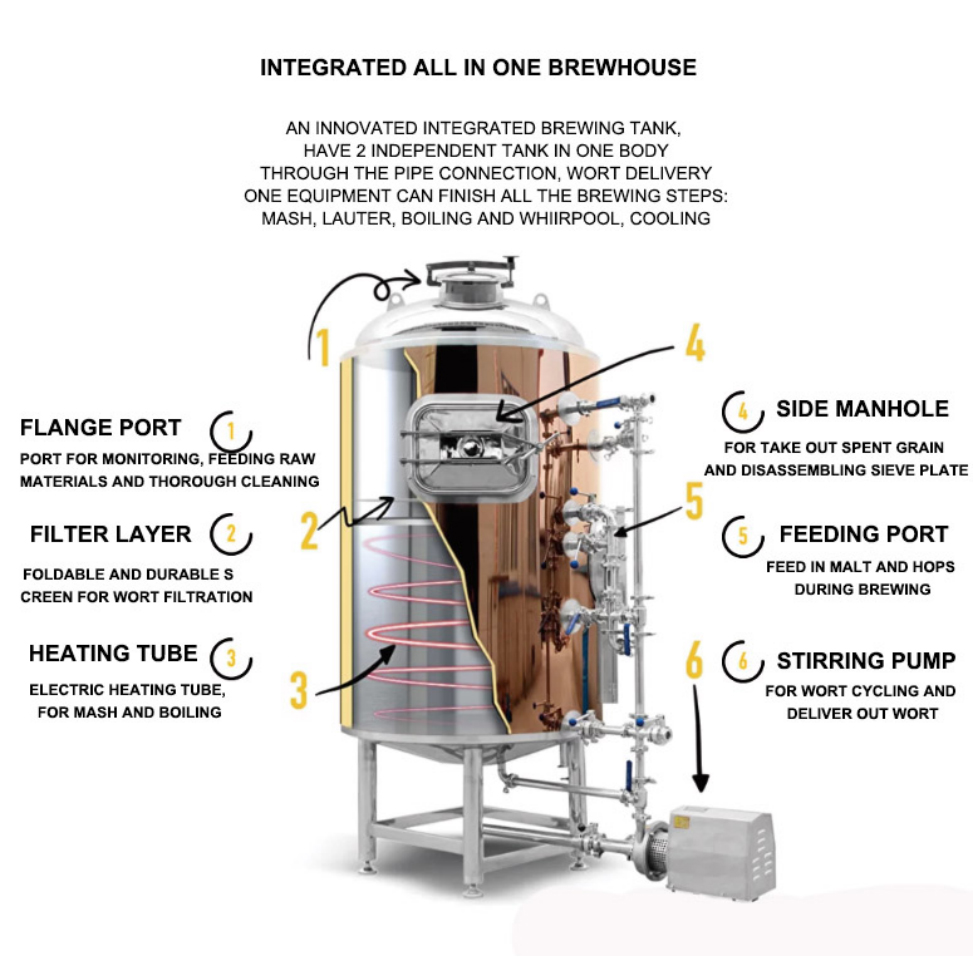

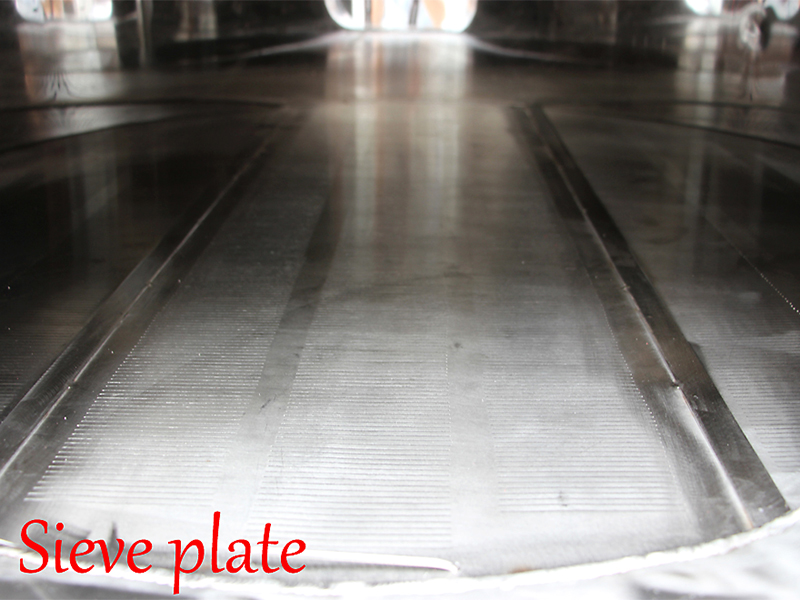

Mash Tun	1	1. Modes: Boiling, lauter and whirlpool all in one tun; 2. Material: SUS304 with copper layer; 3. Inner thickness: 2-3mm; External thickness: 1.5-3mm; Mushroom cap thickness: 2-3mm; 4. Capacity: 2.5BBL; 5. Heating: 4pcs electric heating tube, Power: 20kw/380v; 6. Insulation sandwich: perlite of 60mm thickness; 7. Surface treatment: 8K mirror surface processing; 8. Thermocouple thermometer; 9. Mash Filtering plate;
Mash Pump	1	1. Modes: sanitary centrifugal pump; 2. Power: 2.2kw; 3. Pump capacity: 5T/h; 4. Pump head: 18m;
Heat Exchanger	1	1. Material: food grade stainless steel; 2. Size: 5m²; 3. Design pressure: 1.0MPa; 4. Work temps: 170℃;
