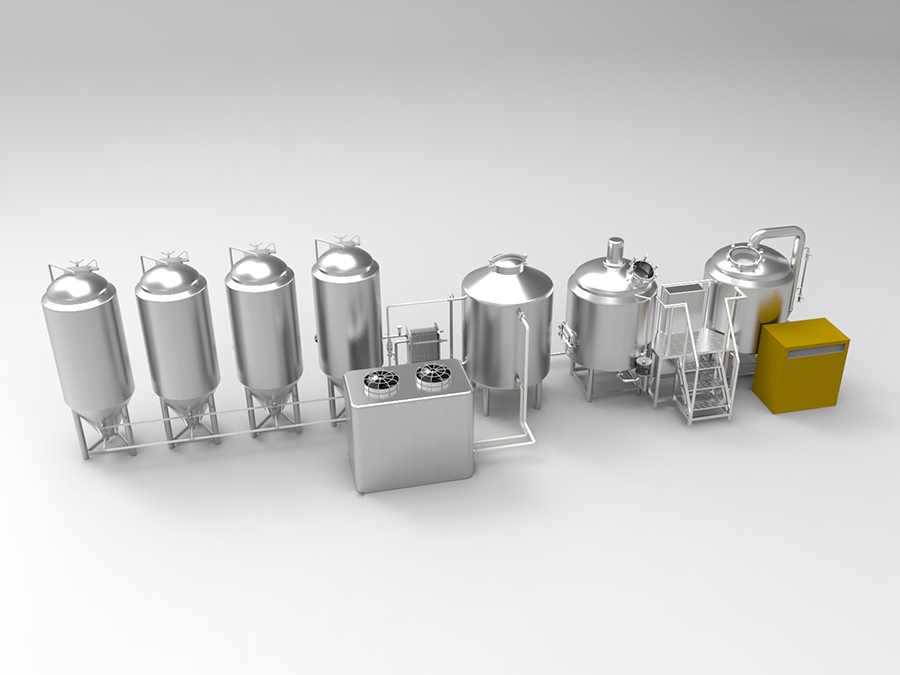

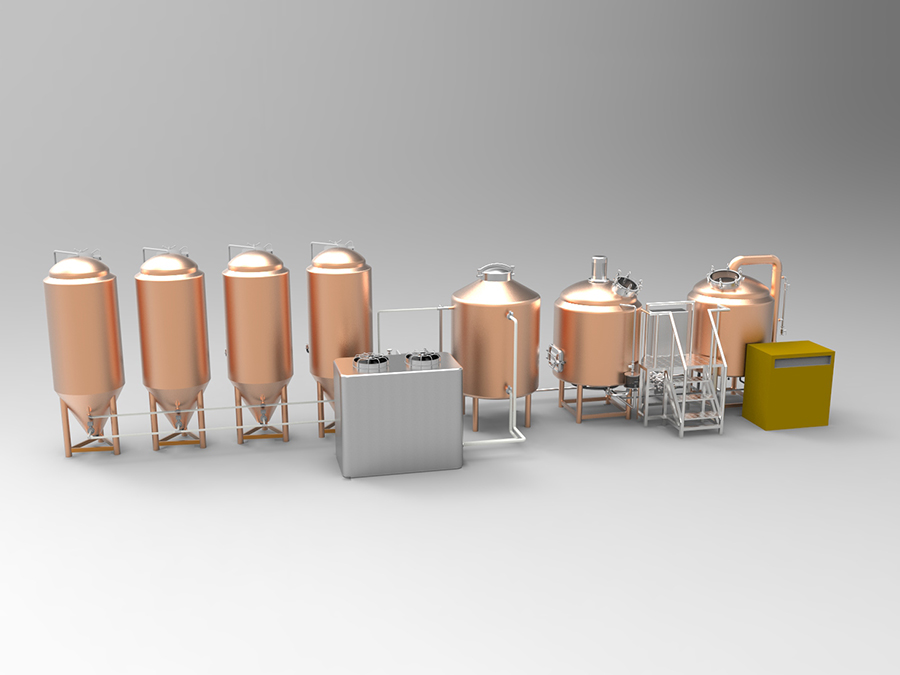

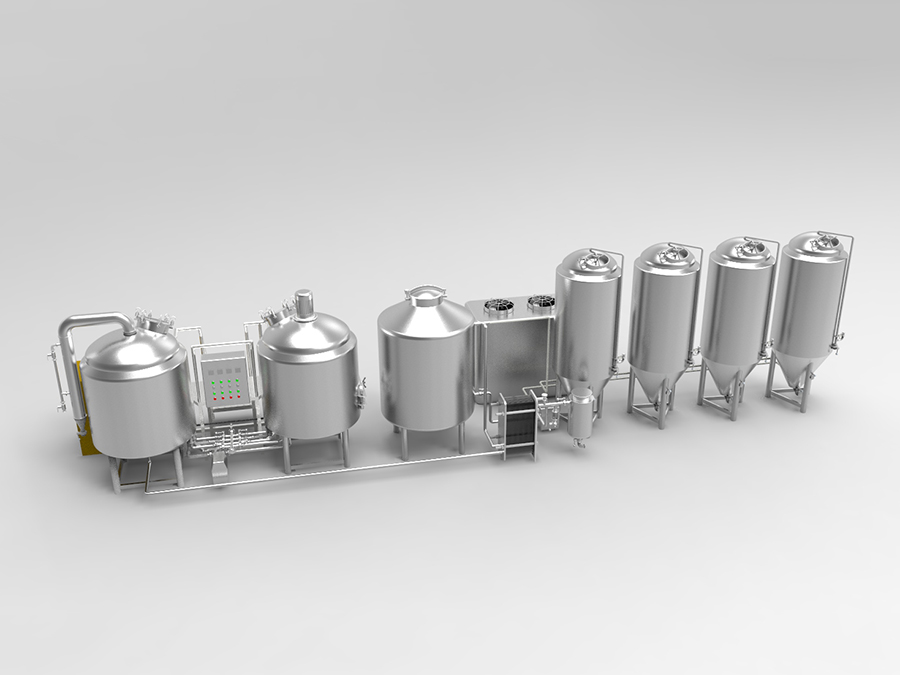

600L craft beer brewery equipment

China Nanyang Jingde Beer Equipment Co.,Ltd; is a professional beer equipment manufacturer which is developed on the basis of the existing large, small and medium-sized beer equipment in Germany,Canada, the United States, Australia, Britain and China

Keywords:

Number and size:

Category:

Pub/hotel Brewery Equipment

Consultation hotline:

0086-16692085799

Inquiry

600L craft beer brewery equipment

Picture and text details

Mashing /Lauter Tank	•Effective volum: 600 Liter; •Total volum: 750 Liter; •Inner jacket (SUS 304), Thickness=3.0mm; •External jacket (SUS 304), Thickness =2.0mm; •Insulation layer: Polyurethane-Thickness: 80mm; •Heating method: steam heating by electronical boiler; •Top manhole: φ600mm, round stainless steel manhole, equipped with sight glass, used for observe the boiling status; •4 pcs completely SUS304 heavy duty legs; •Spraying ring, make it easier and quicker to wash grain; •False bottom (filter plate), laser cutting T-wires, plate gap: 0.8mm; Material is SUS 304; •Filter method: Suction filtration by wort pump, controlled with frequency converter; •Flat tank bottom, with wort collection tube; •CIP spraying ball, 360° coverage; •Temperature measurement way: PT100; •100% TIG welded joints; •Interior finish: overall polishing to 0.2-0.4μm without dead corner;

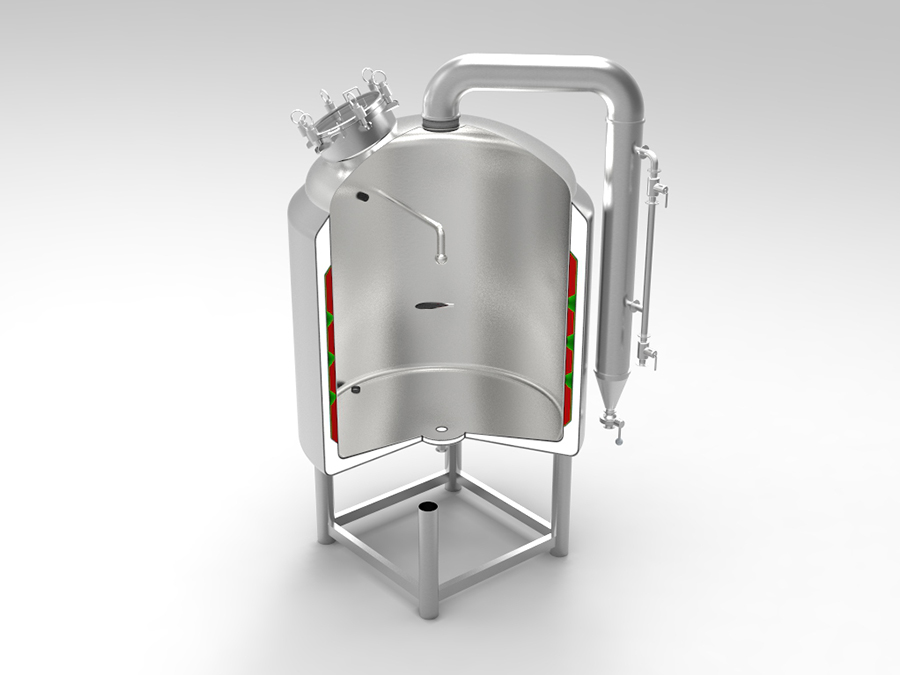

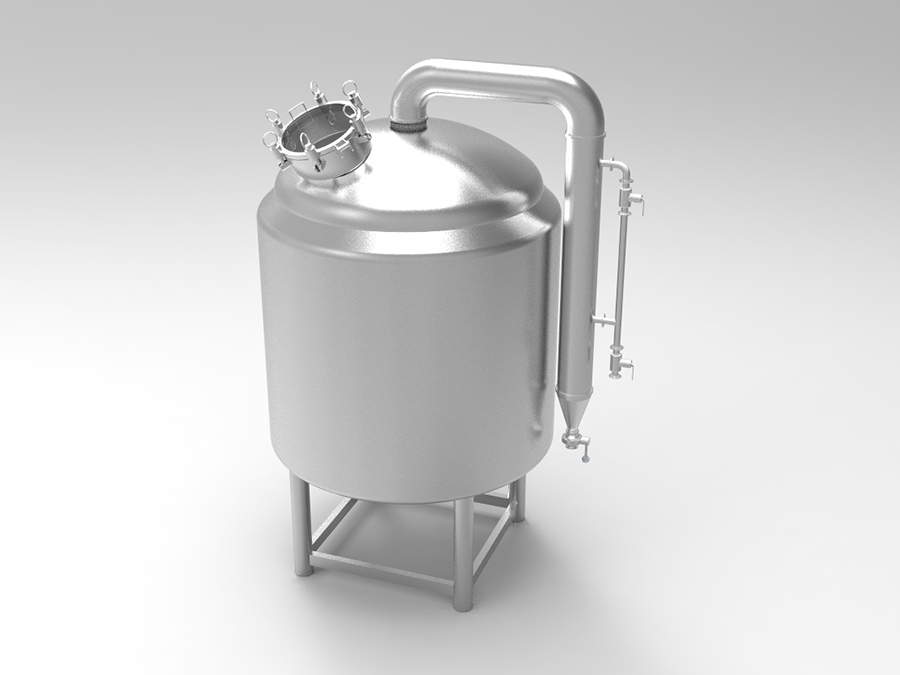

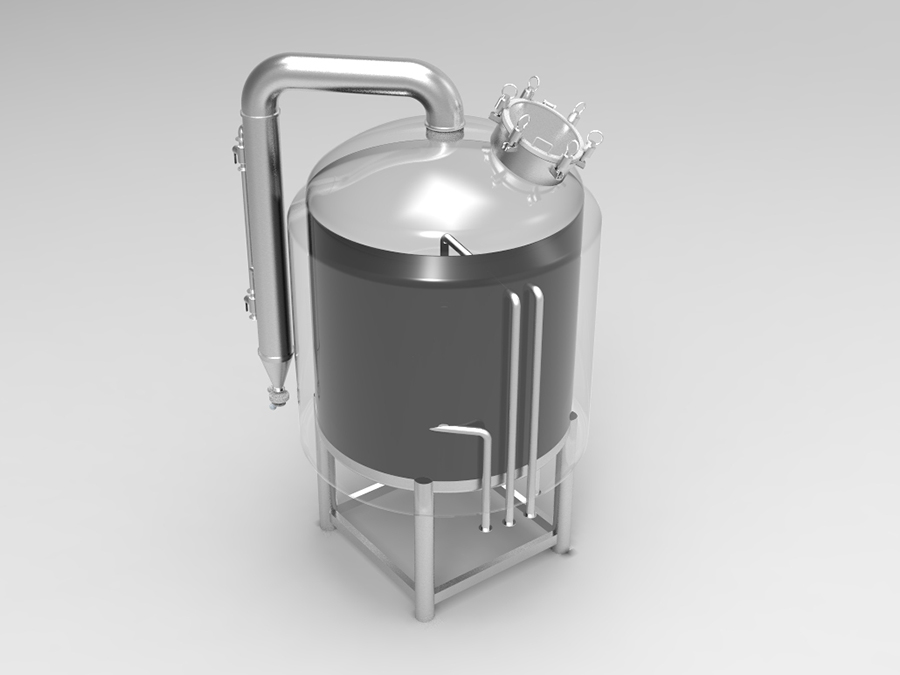

Boiling /Whirlpool Tank	•Effective volum: 600 Liter; •Total volum: 750 Liter; •Inner jacket (SUS 304), Thickness=3.0mm; •External jacket (SUS 304), Thickness =2.0mm; •Dish head (SUS 304), Thickness=3.0mm; •Insulation layer: Polyurethane-Thickness: 80mm; •Heating method: steam heating by electronical boiler; •Top manhole: φ600mm, round stainless steel manhole, equipped with sight glass used observe the boiling status; •4 pcs completely SUS304 heavy duty legs; •Tangential whirlpool inlet; •Sanitary leveling gage; •CIP spraying ball, 360° coverage; •Temperature measurement way: PT100; •100% TIG welded joints; •Interior finish: overall polishing to 0.2-0.4μm without dead corner;
Sanitary Transfer Pump	• Flow rate 5m3/h, lift 24m •Power: 2.2KW, Rev: 2880r/min • Inlet￠51, outlet￠38, tri-clamp quick-installed •Sanitary SUS304 •Centralized hard-piped manifold for liquid flow easily controlling •Open impeller •Complete valves, fittings and all parts •Flow rate of wort pump is controlled by frequency converter
Heat exchanger	•BR0.1/ 10 ㎡ •Heat exchanger plate: Alfa Laval •Design Structure: Suspension type, screw material is SUS304, nut material is brass very easy disassembled for cleaning. Stainless steel 304 material •Design pressure: 1.0 Mpa •Working temperature: 170° •Wort inlet and outlet diameter is φ32 •Ice water inlet and outlet diameter is φ32 •Tap water inlet and outlet diameter is φ32 •Tri-clamp quick-installed, single stage and 2 processes
Brewhouse controller	•Show temperature of brewhosue and hot water tank •Material is SUS304 •Temperature controller, •All pumps, motors will be controlled by this controller •Temperature display and Manu heating Control for brewhouse tanks
Electronical boiler	•Power: 48KW •Rated evaporation: 65KG/H •Steam temperature: 171℃ •Rated pressure: 0.7MPa
