Two Vessel Brew System Is An Essential Tool In The World Of Craft Beer Brewing

Release Time：2024-12-07

Source:

Good brewing system is an essential tool to making great beer.

The size of 10BBL | 20BBL | 30BBL | 40BBL | 50BBL saccharification system is standard production size and can be customized according to your needs. According to the different heating methods, the saccharification system can be divided into three types, such as steam heating type, gas heating type, electric heating, etc., or a combination of heating methods can be used according to the situation. A saccharification system consists of a saccharification tank, a filtration tank, a boiling tank, and a suspension and sinking tank, etc. The four types of tanks are combined together at will to meet the requirements of different brewing systems.

All tanks are made of certified stainless steel with 100% TIG welded joints and sanitary polished internal welds. All tanks feature triple clamp connections and are designed to start at 14.7 PSI with a test pressure of 30 PSI. we can customize tanks to meet different needs based on customer space and production requirements.

Each tank can be customized with nameplates, different standard valves and fittings.

Equipment Configuration:

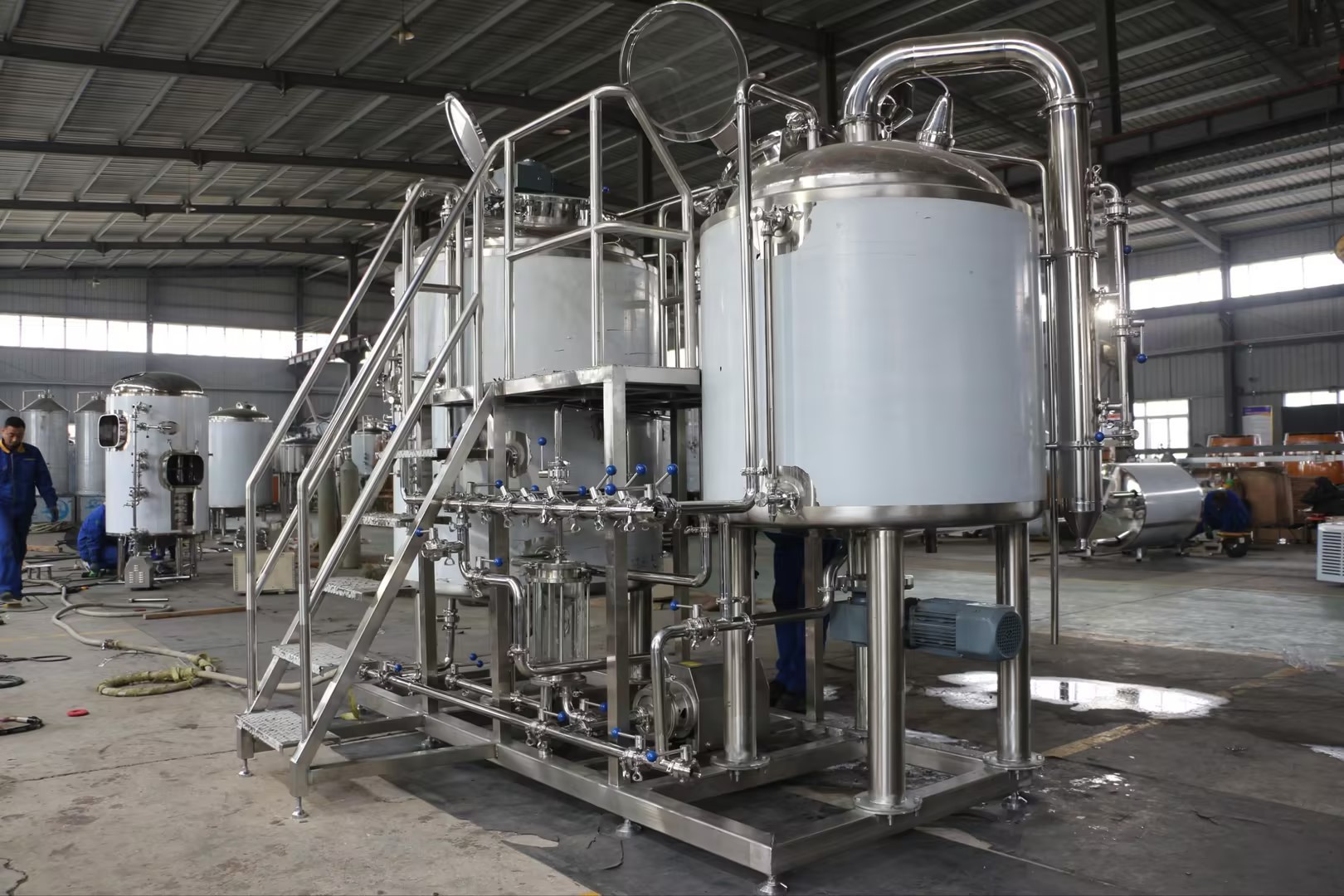

Two vessel steam heated saccharification system
Volume: 5BBL/7BBL/10BBL/15BBL/20BBL/30BBL or customized

- Saccharification Filter Tank:
With water-powder mixer
With steam jacket
Saccharification mixing and filtering mixing in one unit
With bottom filter plate
Spraying pipes inside the tank
Coil discharge / Multi-outlet discharge
Viewing light
Visual glass manhole on top
CIP cleaning ball
Bottom top water cleaning ball
Side square outlet manhole
Discharge Hopper
Thermometer probe

- Boiling suspension and sinking tank:
With steam jacket
With cutout
Bottom baffle
Sight light
Top visual glass manhole
CIP Cleaning Ball
Top steam outlet with condensate drain/with condensate tower

Thermometer probe
- Buffer tank: all stainless steel/all glass/stainless steel with glass sight glass
- Stainless steel operating platform: with ladder, with guardrail
- Plate heat exchanger
- Sanitary transfer pumps*2.
- Oxygen charging device (venturi).
- Manual or semi-automatic control system.
- Inner surface pickled and passivated / mirror polished
- External surface brushed / matte polished
- Hot and cold water mixing device

Other Heating Methods Reference

Electric heating:

1. Insert the electric heating tube into the jacket, use the electric heating tube to heat the medium in the jacket and then heat the material in the tank.
2. Insert the electric heating pipe directly into the inner liner, and heat the material directly when working.

Gas heating:

In the tank to be heated at the bottom of the gas stove, the use of gas heating.

I hope it will be helpful to you. Any questions left? For more information, please contact us to let we know!
